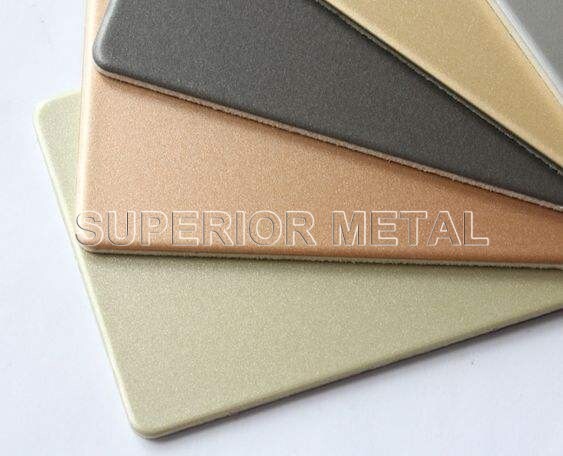

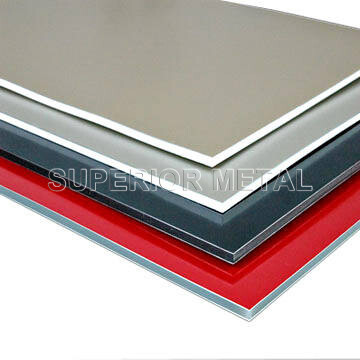

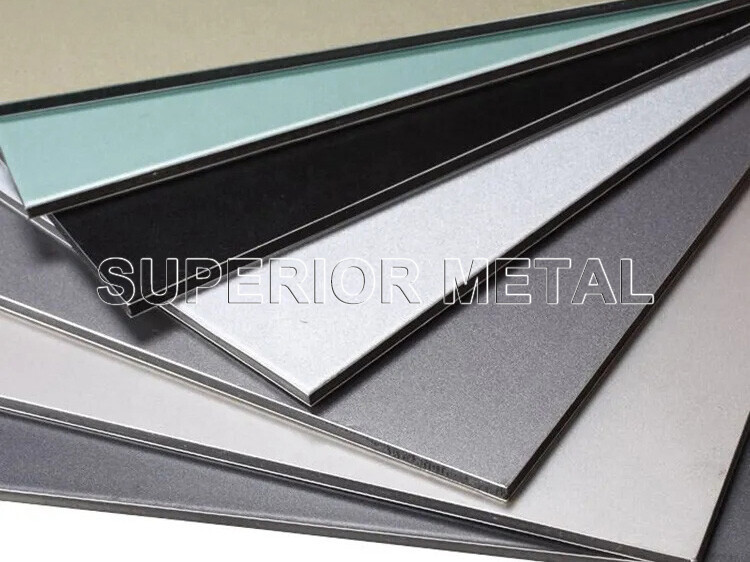

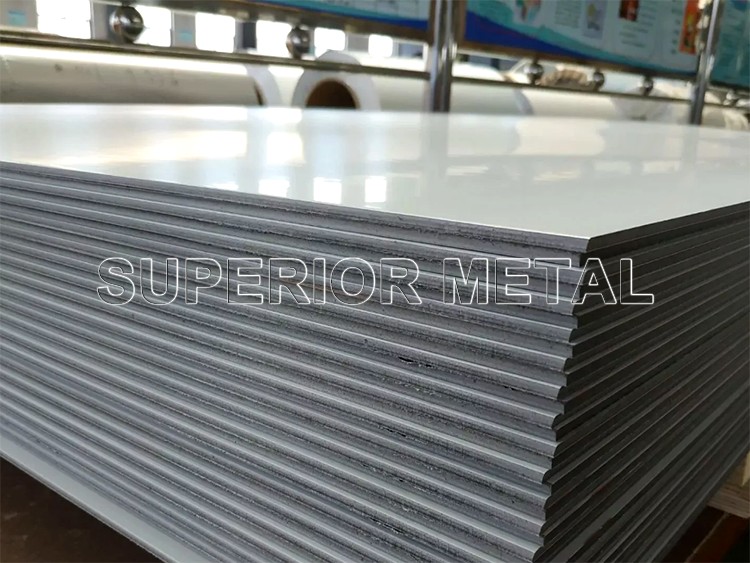

Aluminum Composite Panel Manufacturer Price
● Product name：Aluminum composite panels
● Aluminum Alloy: AA1100,AA3003,AA5005 ect
● Core: HDP, LDP, B1 Fire-Proof,A2 Fire-Proof
● Coating: PE(Warranty is 5 years ) ,PVDF (Warranty is 15 years )
● Color: Alumetal existing color (Alumetal color chart ) and customized color(Sample ,Pantone and Ral color )

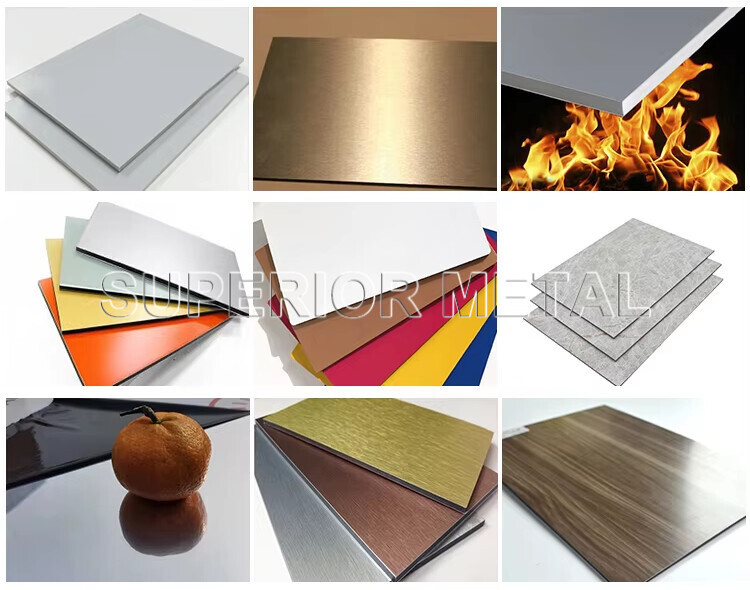

● Finish: Matt, Glossy, Mirror, Metal, Nacreous, Nano, Spectrum, Brushed, Granite, Wooden, etc.
● Price: Quote according to the Specifications and Order Quantity you need
● Datas Required Before Quotation:
①Thickness ②Width ③Length ④Purchase Quantity ⑤Special Requirements ⑥Your Email Whatsapp or Any Contact Ways
| Panel Dimensions |
|
| STANDARD WIDTH | 1250 |
| AVAILABLE WIDTH | 1000mm, 1500mm, 1800mm |
| STANDARD LENGTH | 3200mm , 4000mm |
| AVAILABLE LENGTH | Custom order up to 11000mm |
| AVAILABLE THICKNESS | 3mm, 4mm, 5mm, 6mm |
| AVAILABLE SKIN THICKNESS | 0.3mm, 0.5mm |
| Panel Tolerance |
|
| LENGTH | ±4mm |
| WIDTH | ±2mm |
| THICKNESS | ±0.2mm up to 4mm, ±0.3mm up to 6mm |
| BOW (LENGTH, WIDTH) | Maximum 0.8% |
| SQUARENESS | Maximum 5mm |
| SKIN THICKNESS | As per International Standards |
CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE:
| Garde | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHERS1 | OTHERS2 | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | 0.05 | 0.03 | 0.03 | — | 99.5 |
| 1060 | 0.25 | 0.35 | 0.04 | 0.05 | 0.03 | — | 0.04 | 0.03 | 0.03 | — | 99.7 |
| 1100 | Si + Fe ≤ 1.0 | 0.05-0.20 | 0.05 | — | — | 0.1 | — | 0.05 | 0.15 | 99 |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.30-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | — | — | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50-1.1 | 0.1 | 0.25 | — | 0.05 | 0.15 | Rem. |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | — | 0.05 | 0.15 | Rem. |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.03 | 0.1 | Rem. |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Rem. |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | Rem |
PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER:
| Grade | Hardness | Tensile Strength | Yield Strength | Elongation(%) |
| (MPa) | (MPa) | 0.25-1.25mm | 1.26-3.0mm |
| 1100 | O | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 |
| H14 | 124.1 | 117.2 | 3 | 10 |
| 2024 | O | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 |
| T4 | 468.8 | 324.1 | 20 | 19 |
| 3003 | O | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 |
| H14 | 151.7 | 144.8 | 3 | 7 |
| 5052 | O | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 |
| H34 | 262 | 213.7 | 6 | 8 |
| 5083 | O | 275.8 | 144.8 | 21 | 25 |
| H32 | 282.7 | 151.7 | 20 | 21 |
| H34 | 330.9 | 255.1 | 11 | 14 |
| 6061 | O | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 |
| T6 | 310.3 | 275.8 | 12 | 17 |
| 7075 | O | 227.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 |
