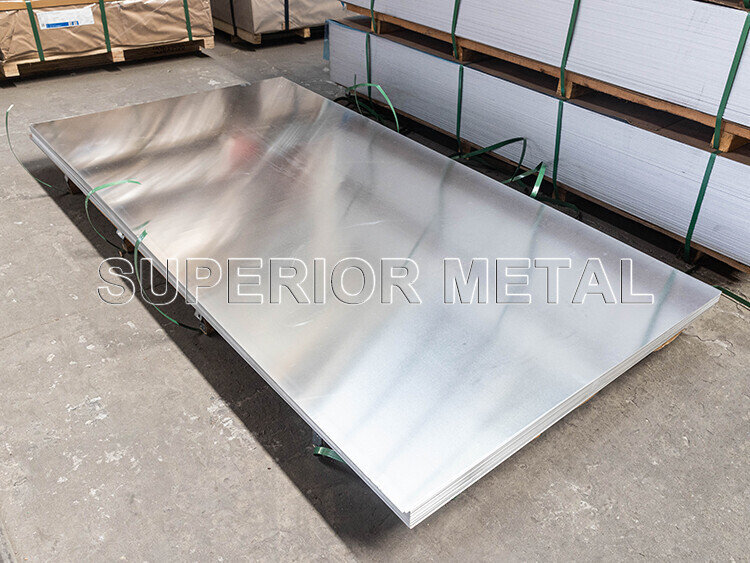

6061 T651 Aluminum Alloy Sheet

● MOQ: 1 Ton Each
● Loading Port: China Port
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.
● Country of Origin: China



E-mail：sale2@jdxtg.com



Tel：0086 18961806236



WhatsApp：8618961806236

Get Live Quotes

6000 Series 4ftx8ft 6061 T6 Aluminum Alloy Plate Sheet Supplier

● Model Number: AL6061

● Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.

● Standard: ASTM, AISI, JIS, EN, DIN, GB, ASME, etc.

● Standard Export Package: Wooden Case or Wooden Pallet

● Documents: Invoice, Packing list, Bill of Loading, Mill Test Certificate

● Inspection: Any Third-Party Inspection Certificate Like SGS, TUV

● Price: Quote according to the Specifications and Order Quantity you need

● Datas Required Before Quotation:

①Thickness ②Width ③Length ④Purchase Quantity ⑤Special Requirements ⑥Your Email Whatsapp or Any Contact Ways

DIMENSIONAL SPECIFICATION LIST

CHEMICAL COMPOSITION

PHYSICAL PROPERTIES

STANDARD THICKNESS OF ALUMINUM ALLOY PLATE FACTORY:
0.2mm	0.3mm	0.4mm	0.5mm	0.6mm	0.8mm
1.0mm	1.2mm	1.5mm	2.0mm	2.5mm	3.0mm
4.0mm	5.0mm	6.0mm	8.0mm	10mm	12mm
15mm	20mm	25mm	30mm	35mm	40mm
45mm	50mm	55mm	60mm	65mm	70mm
75mm	80mm	85mm	90mm	95mm	100mm
105mm	110mm	115mm	120mm	125mm	130mm
135mm	140mm	145mm	150mm	155mm	160mm
165mm	170mm	175mm	180mm	185mm	190mm
195mm	200mm	We Can Customize Any Size, Please Contact US.
Remark:
Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm
Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm

Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12
