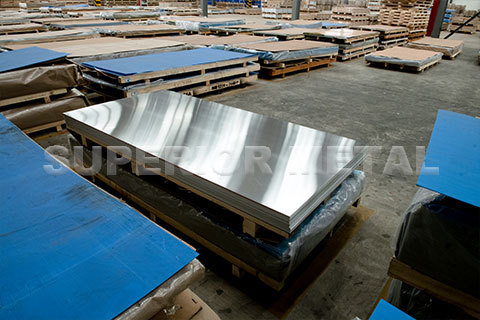

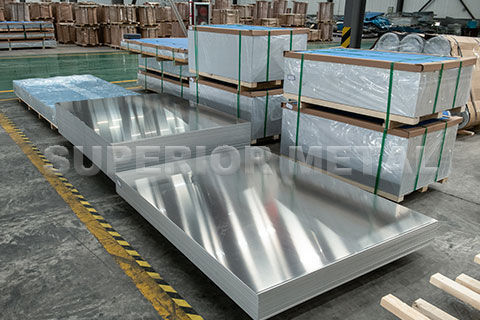

1050/1050A Aluminum Sheet

1000 SERIES 1050 ALUMINUM PLATE 1050A ALUMINUM SHEET MANUFACTURER


Description: 1050/1050A aluminum sheet plate is a series of pure aluminum products. 1050/1050A aluminum sheet plate has an aluminum content of more than 99.5%, low density, good electrical and thermal conductivity, good corrosion resistance, good plastic processing performance, and can be processed into plates, strips, foils and profiles. For pressed products, gas welding, argon arc welding and spot welding are possible.

Superior Metal Aluminum can customize the production of 1050 aluminum sheet plates, with a thickness of 10-600mm and a width of 300-2800mm.

1050/1050A Aluminum Sheet

DIMENSIONAL SPECIFICATION LIST
CHEMICAL COMPOSITION
PHYSICAL PROPERTIES
ThickStandard Width x LengthThickStandard Width x LengthThickStandard Width x LengthThickStandard Width x Length
0.2mm1000x2000mm, 1250x2500mm0.3mm1000x2000mm, 1250x2500mm0.4mm1000x2000mm, 1250x2500mm0.5mm1000x2000mm, 1250x2500mm
0.6mm1000x2000mm, 1250x2500mm0.8mm1219x2438mm, 1250x2500mm1.0mm1219x2438mm, 1250x2500mm1.2mm1219x2438mm, 1250x2500mm
1.5mm1219x2438mm, 1250x2500mm2.0mm1219x2438mm, 1250x2500mm2.5mm1219x2438mm, 1250x2500mm3.0mm1219x2438mm, 1250x2500mm
4.0mm1219x2438mm, 1250x2500mm5.0mm1219x2438mm, 1250x2500mm6.0mm1219x2438mm, 1250x2500mm8.0mm1219x2438mm, 1250x2500mm
10mm1250x2500mm, 1500x3000mm12mm1250x2500mm, 1500x3000mm15mm1250x2500mm, 1500x3000mm20mm1250x2500mm, 1500x3000mm
25mm1250x2500mm, 1500x3000mm30mm1250x2500mm, 1500x3000mm35mm1250x2500mm, 1500x3000mm40mm1250x2500mm, 1500x3000mm
45mm1250x2500mm, 1500x3000mm50mm1250x2500mm, 1500x3000mm55mm1250x2500mm, 1500x3000mm60mm1250x2500mm, 1500x3000mm
65mm1250x2500mm, 1500x3000mm70mm1250x2500mm, 1500x3000mm75mm1250x2500mm, 1500x3000mm80mm1250x2500mm, 1500x3000mm
85mm1250x2500mm, 1500x3000mm90mm1250x2500mm, 1500x3000mm95mm1250x2500mm, 1500x3000mm100mm1250x2500mm, 1500x3000mm
110mm1250x2500mm, 1500x3000mm120mm1250x2500mm, 1500x3000mm130mm1250x2500mm, 1500x3000mm140mm1250x2500mm, 1500x3000mm
150mm1250x2500mm, 1500x3000mm160mm1250x2500mm, 1500x3000mm170mm1250x2500mm, 1500x3000mm180mm1250x2500mm, 1500x3000mm
190mm1250x2500mm, 1500x3000mm200mm1250x2500mm, 1500x3000mm250mm1250x2500mm, 1500x3000mm300mm1250x2500mm, 1500x3000mm
350mm1250x2500mm, 1500x3000mm400mm1250x2500mm, 1500x3000mmWe Can Customize Any Size, Please Contact US.
Remark:
Thickness 0.2mm - 0.6mm , Width x Length (standard) : 1000mm x 2000mm, 1250mm x 2500mm and any cut to size
Thickness ≥ 0.8mm , Width x Length (standard) : 1250mm x 2500mm, 1219mm x 2438mm (4' x 8'), 1500mm x 3000mm and any cut to size


CHEMICAL COMPOSITION OF ALUMINUM SHEET PRICE
GardeSiFeCuMnMgCrZnTiOTHERS1OTHERS2Al
10500.250.40.050.050.05—0.050.030.03—99.5
10600.250.350.040.050.03—0.040.030.03—99.7
1100Si + Fe ≤ 1.00.05-0.200.05——0.1—0.050.1599
20240.50.53.8-4.90.30-0.91.2-1.80.10.250.150.050.15Rem.
30030.60.70.05-0.201.0-1.5——0.1—0.050.15Rem.
50050.30.70.20.20.50-1.10.10.25—0.050.15Rem.
50520.250.40.10.12.2-2.80.15-0.350.1—0.050.15Rem.
50830.40.40.10.4-1.04.0-4.90.05-0.250.250.150.030.1Rem.
60610.4-0.80.70.15-0.400.150.8-1.20.04-0.350.250.150.050.15Rem.
70750.40.51.2-2.00.32.1-2.90.18-0.285.1-6.10.20.050.15Rem


PHYSICAL PROPERTIES OF ALUMINUM SHEET PLATE MANUFACTURER
GradeHardnessTensile StrengthYield StrengthElongation(%)
(MPa)(MPa)0.25-1.25mm1.26-3.0mm
1100O89.634.5306
H12110.3103.4412
H14124.1117.2310
2024O186.275.81820
T3482.6344.71618
T4468.8324.12019
3003O110.341.43033
H12131124.1911
H14151.7144.837
5052O193.189.62021
H32227.5193.1710
H34262213.768
5083O275.8144.82125
H32282.7151.72021
H34330.9255.11114
6061O124.155.22526
T4241.3144.82224
T6310.3275.81217
7075O227.5103.41618
T6572.3503.31112
