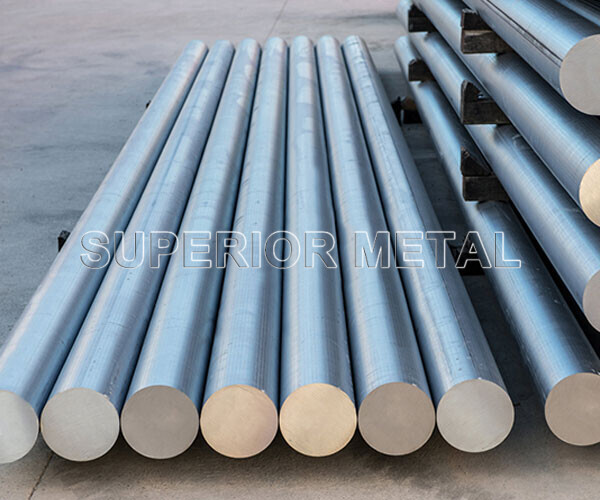

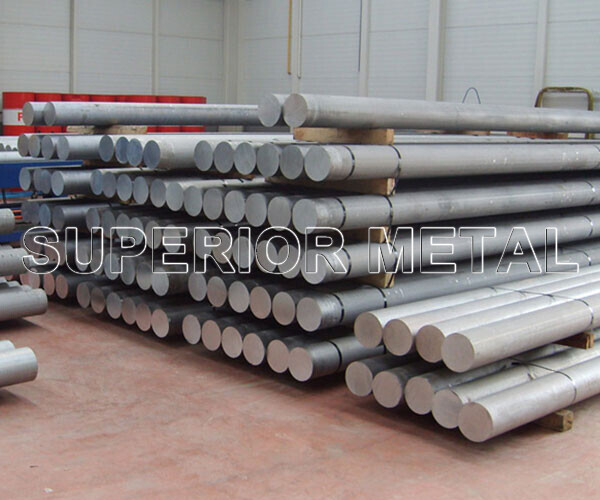

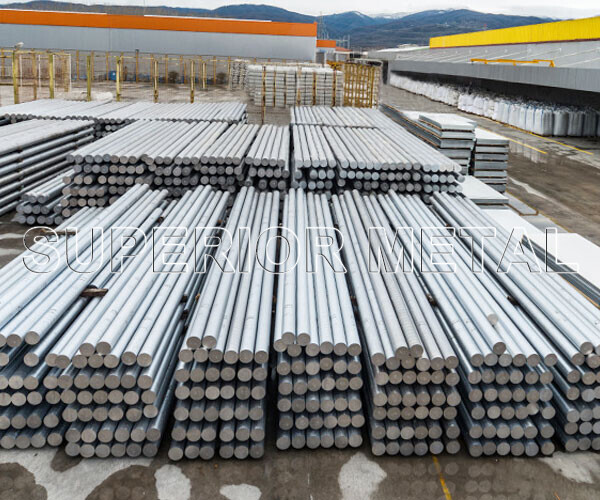

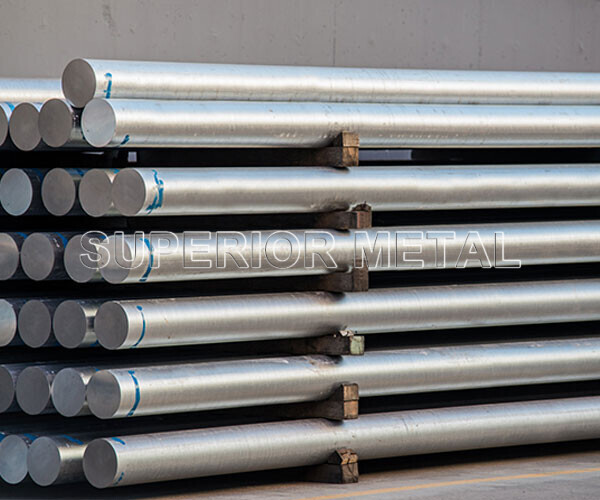

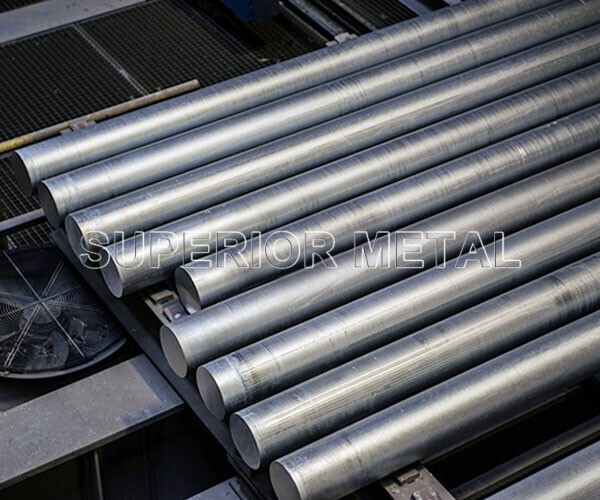

3003 Aluminum Alloy Bar

● MOQ: 1 Ton Each
● Loading Port: China Port
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.
● Country of Origin: China



E-mail：sale2@jdxtg.com



Tel：0086 18961806236



WhatsApp：8618961806236

Get Live Quotes

3000 Series Round Square 3003 Aluminum Alloy Bar Rod Pirce

● Model Number: 3003 Aluminium

● Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.

● Standard: ASTM, AISI, JIS, EN, DIN, GB, ASME, etc.

● Standard Export Package: Wooden Case or Wooden Pallet

● Documents: Invoice, Packing list, Bill of Loading, Mill Test Certificate

● Inspection: Any Third-Party Inspection Certificate Like SGS, TUV

● Price: Quote according to the Specifications and Order Quantity you need

● Datas Required Before Quotation:

①Thickness ②Width ③Length ④Purchase Quantity ⑤Special Requirements ⑥Your Email Whatsapp or Any Contact Ways

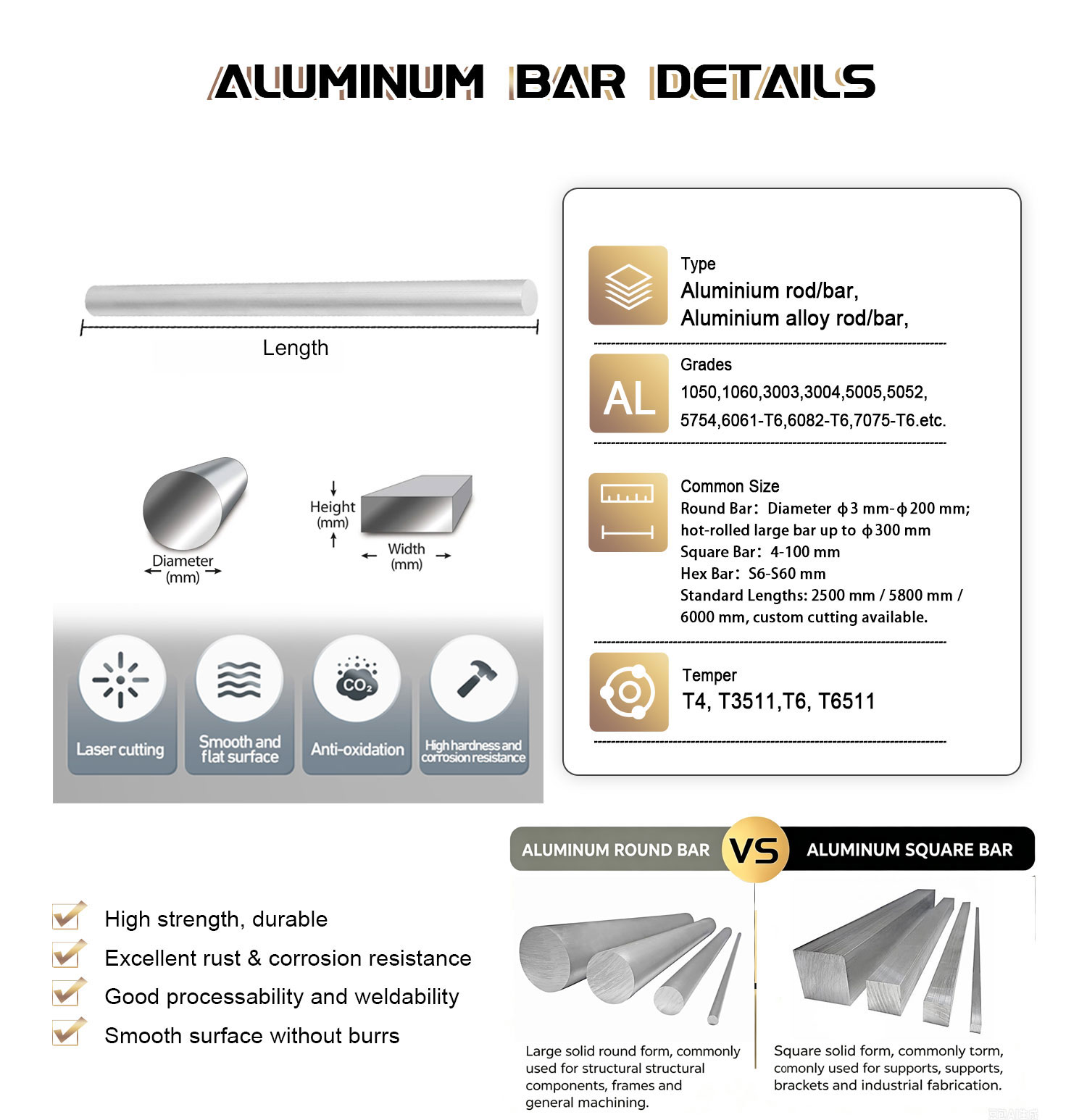

DIMENSIONAL SPECIFICATION LIST

CHEMICAL COMPOSITION

PHYSICAL PROPERTIES

OD	OD	OD	OD
7	28	44.5	63
8	28.6	45	64
10	29	45.5	65
12	30	46	66
12.7	31	47	67
13	31.8	47.6	68
14	32	48	69
15	32.5	49	70
16	33	50	71
17	33.5	50.8	72
18	34	51	73
19	34.9	52	74
20	35	53	75
20.5	35.5	54	76
22.2	37	55	77
23	38.1	56	78
24	39	57	80
25	40	57.5	85
25.4	41	58	90
26	42	59	98
26.5	42.5	60	99.8
27	43	60.5	130
27.2	43.5	61
27.5	44	62

Height	Width	Height	Width	Height	Width	Height	Width
2	55	8	50	12	45	26	102
2	100	8	60	12	65	28	127
4	25	8	65	12	75	30	45
4	31	8	70	12	85	30	60
4	98.5	8	76	12	105	35	50.8
5	26.4	8	80	13	150	35	90
5	42	8	83	14	85	38.1	54
5	50	8	90	15	36	38.1	63.5
5	53	8	105	15	40	38.1	64
5	68	8	110	15	165	38.1	127
5	85	8	118	16	125	40	100
5	100	8	120	18	30	41	56
5	110	9	82	19	110	44	44
6	60	9	110	20	20	45	45
6.5	65	10	30	20	25	51	70
6	100	10	50	20	40	60	73
6	110	10	65	20	70	62	70
7	65	10	90	20	82	85	85
7	72	10	120	20	113
7	76	11	31	20	115
7	90	11	35	22	30
7	95	11	95	25	50
7	100	12	32	25.4	32
7	110	12	40	26	100

CHEMICAL COMPOSITION OF ALUMINUM BAR
Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

PHYSICAL PROPERTIES OF ALUMINUM BAR
Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12
