Aluminum Extrution Pipe



E-mail：sale2@jdxtg.com



Tel：0086 18961806236



WhatsApp：8618961806236

Get Live Quotes

DIMENSIONAL SPECIFICATION LIST

CHEMICAL COMPOSITION

PHYSICAL PROPERTIES

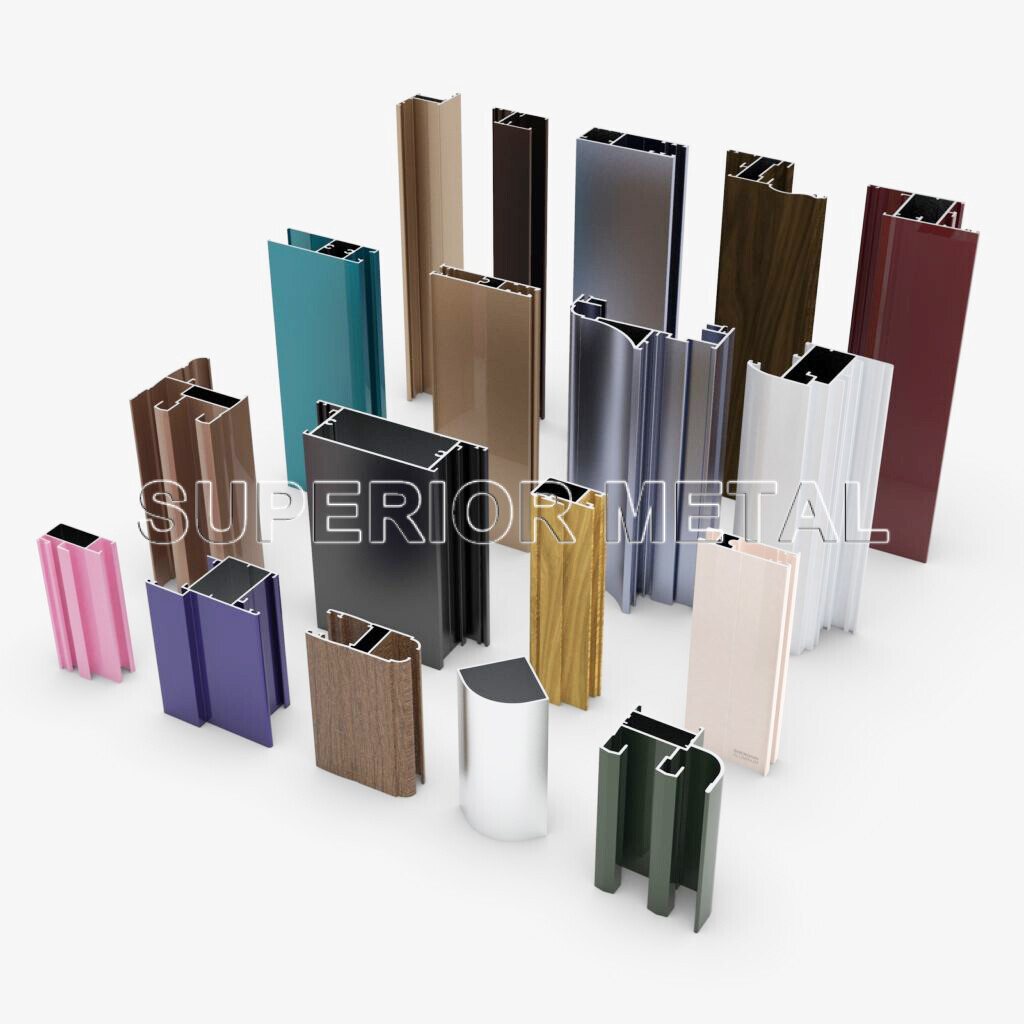

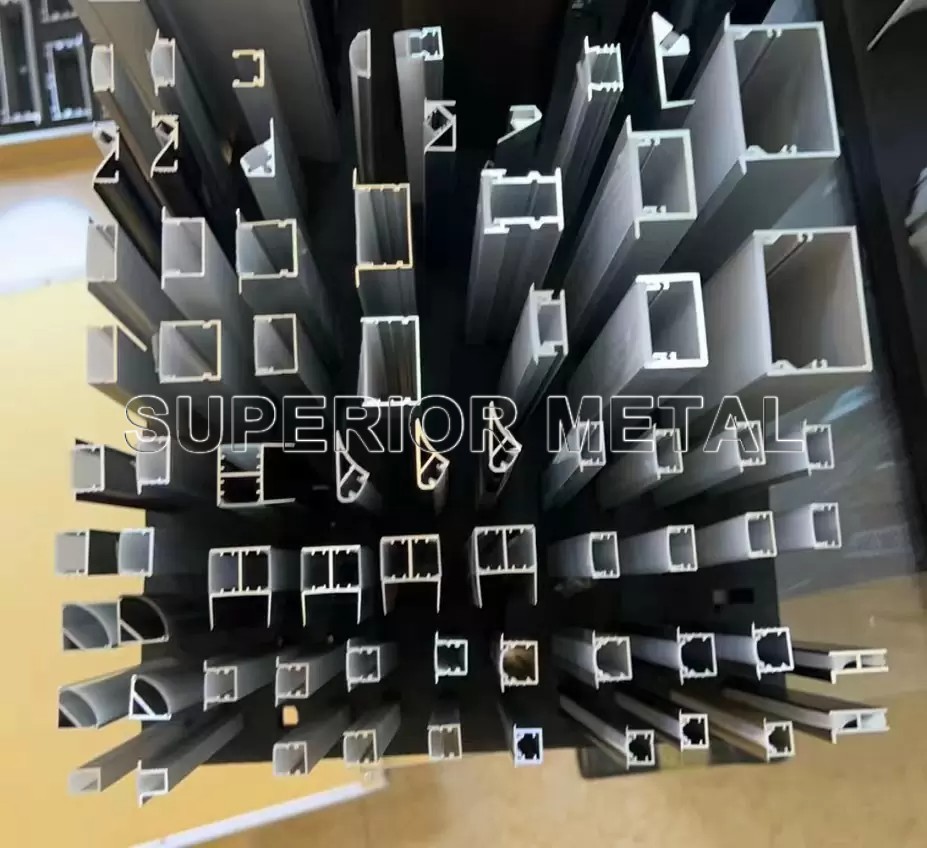

Product Name:	Aluminium Profile for Pipes and Tubes
Aluminum Alloy /Material:	6063, 6060, 6061, 6005, etc. All brand new aluminium alloy.
Temper:	T3-T8. T5, T6.
Shape:	Flat/Square/Round/Hollow/Oval/Triangle/U-profiles/L-profiles/T-profiles/H-profiles
Usage/Application:	Construstion and real estate, Aluminum metal building materails, Decoration, Windows and Doors, Curtain walls, Louver Shutters, Rolling Shutters, Industrial use, Machine, Furniture, Kitchen cabinet, Bath Room, Heat sink, LED profile, Fence, Handrail, Balastrate, Solar frame and panel, Curtain tracks, floor tile trim, etc...

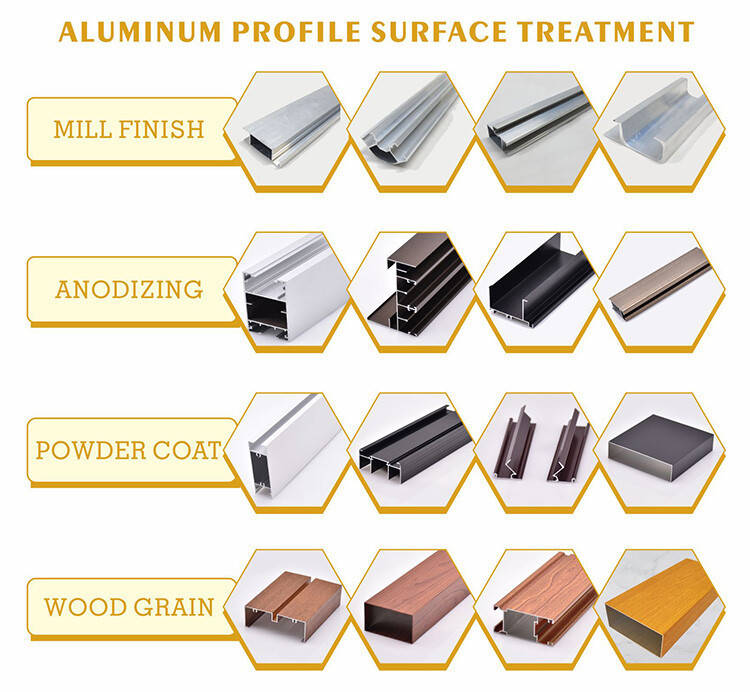

Surface Treament:	Powder Coating, Anodizing, Wood Grain, Polishing, Sandblasating, Electrophoresis or Customized
Color:	Wood, Silver, Black, White, Brown, Bronze, Champagne, Gold, Yellow etc.
Coating thickness:	Anodized:8-12μ , Powder coating: 40-120 μ
Hardness:	8~12 degree for 6063-T5, depend on alloy composition
Length:	3m - 6.5m or customized.
Thickness:	≥ 0.5 mm. Can be customized
Tolerance:	Min. +-0.05mm. Follows “Ultra-High Precision Standard”
Packing:	Protective film, foam. pearl cotton, plastic bag, paper, shrink wrap, wooden box, carton, etc...
MOQ:	1pc for sample is available.
Extrusion Machine:	600-2200 tons all together 7 extrusion lines.
Capacity:	30000 tons per year.
OEM & ODM:	Acceptable
Deep processing ability:	Drilling, Bending, Welding, Aluminium Profile Fabrication, Precise cutting etc
Lifespan:	Anodized for 12-15 years outdoor, Powder coating 8~10 years outdoor Wooden 2 years outdoor.
Certificate:	ISO9001,ISO14001, TUV

Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12
