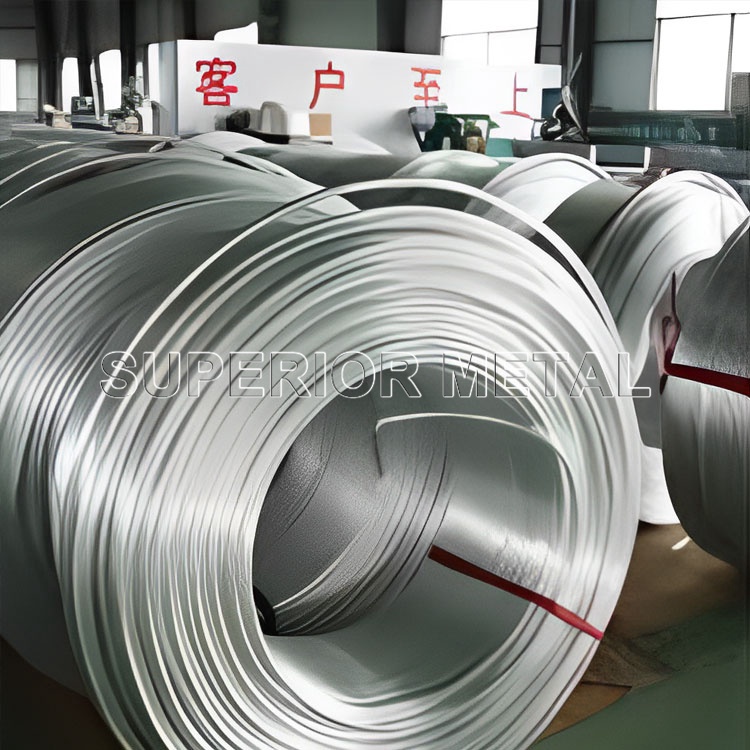

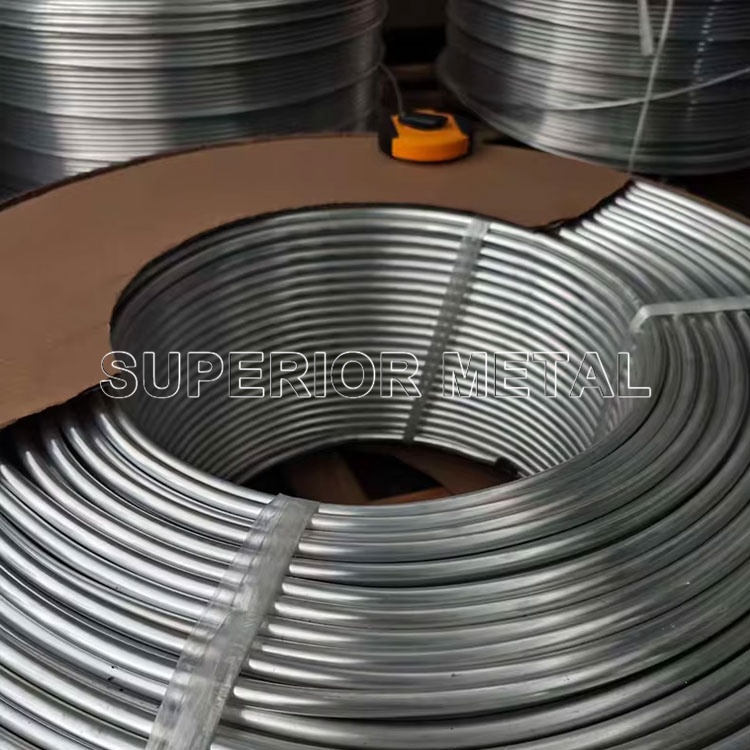

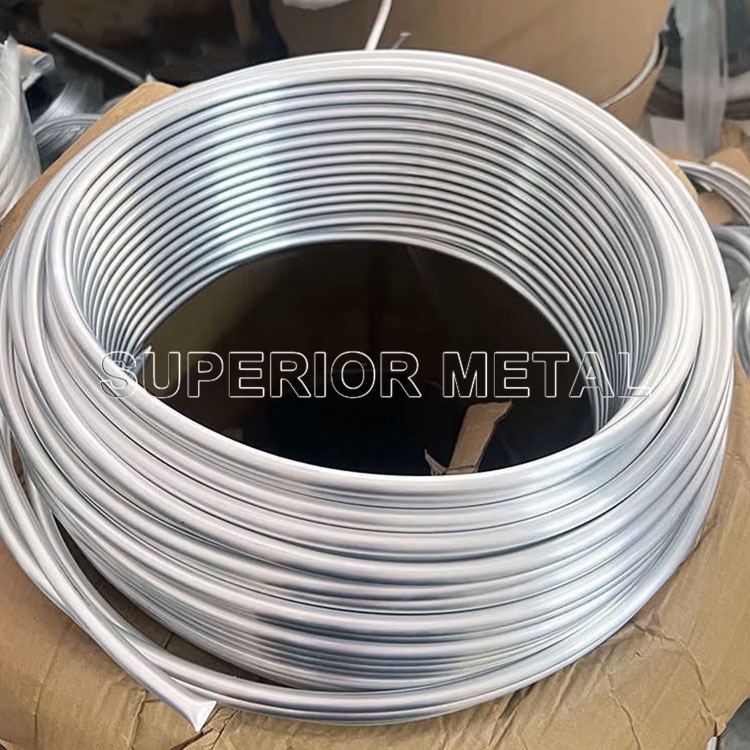

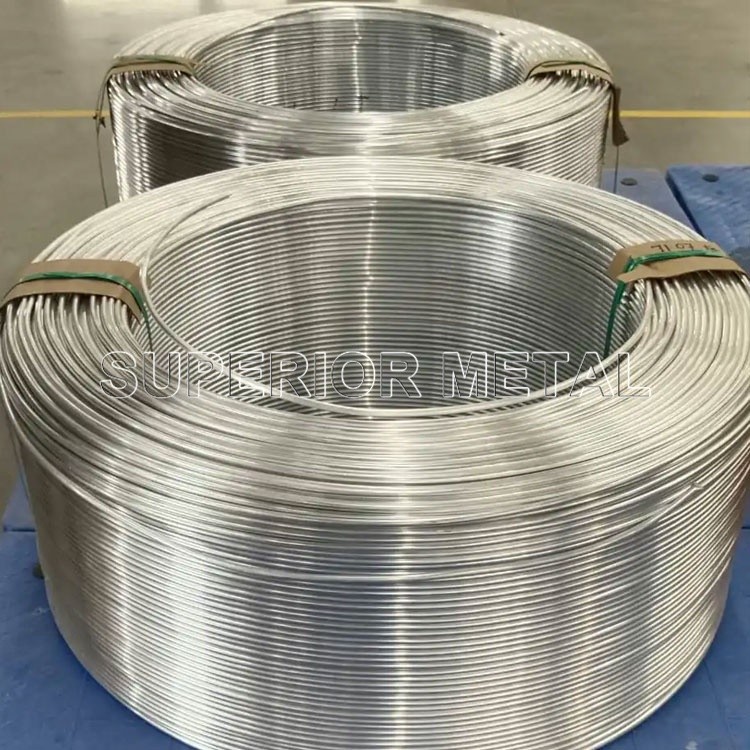

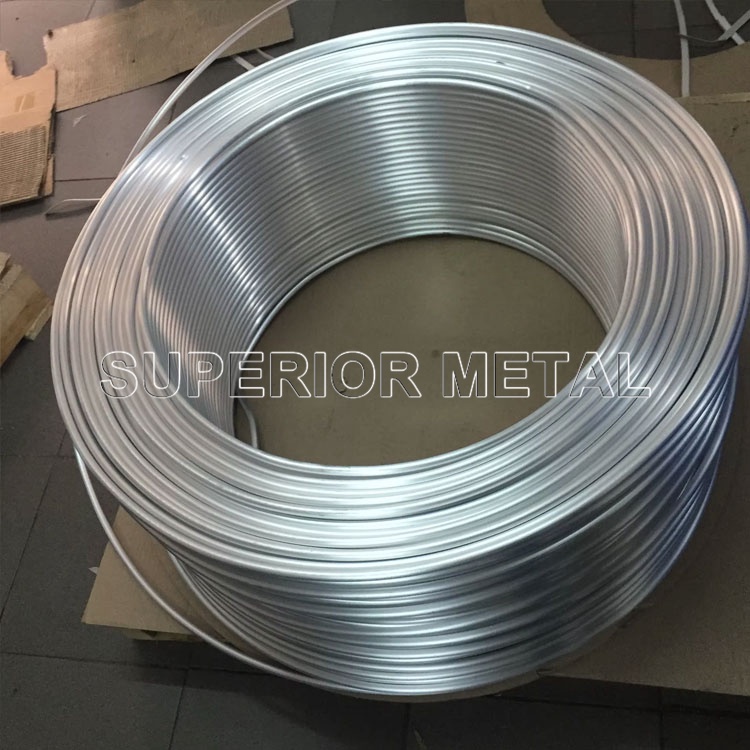

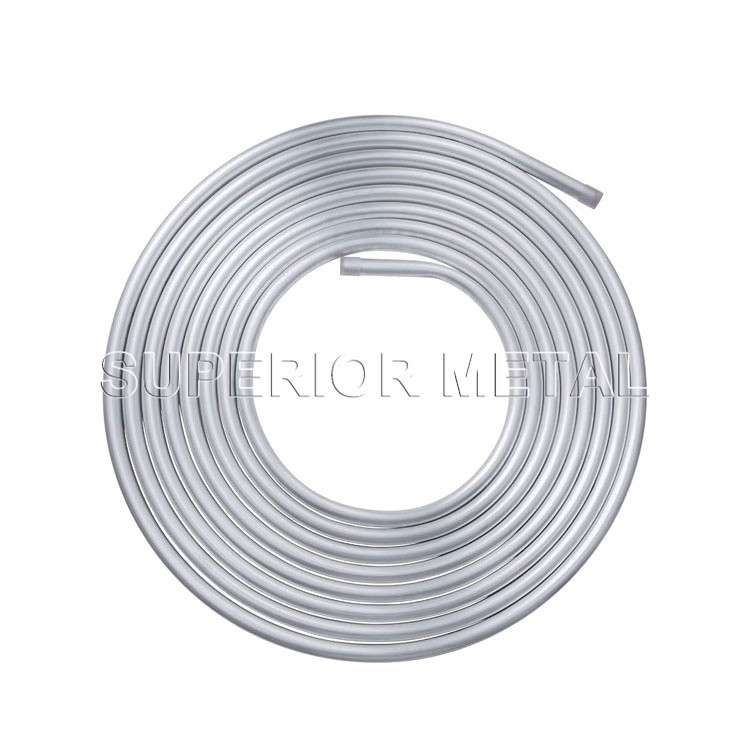

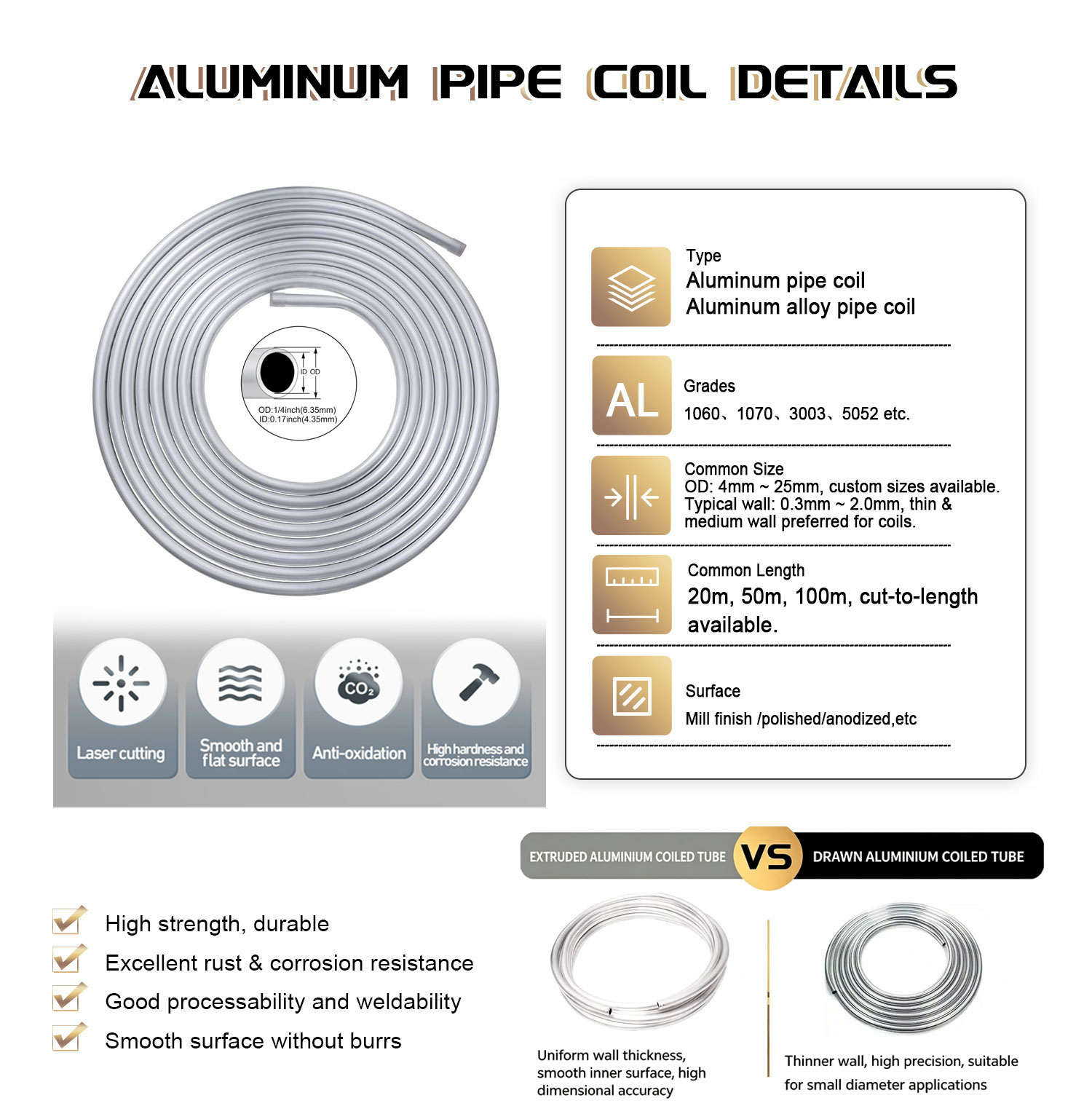

1050 air conditioning aluminum tube

● Min. Order: 1 Ton
● FOB Port: Shanghai
● Payment Terms: Telegraphic Transfer (T/T)
● Country of Origin: China (mainland)
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.



E-mail：sale2@jdxtg.com



Tel：0086 18961806236



WhatsApp：8618961806236

Get Live Quotes

1050 Aluminum Air Conditioner Tube China Factory Price

Model Number: 1050
Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.
Standard: GB/T 4437.1-2015 (Aluminum alloy tubes for air conditioning and refrigeration) / ASTM B210 / EN 755
Standard Export Package: Wooden Case or Woven Bag with protective caps on both ends
Documents: Invoice, Packing List, Bill of Lading, Mill Test Certificate, Quality Warranty
Inspection: Any Third-Party Inspection Available (e.g. SGS, TUV, BV)
Price: Quoted according to specifications, order quantity, and delivery terms
Datas Required Before Accurate Quotation:
① Outer Diameter (OD) ② Wall Thickness ③ Length (or Coil Weight) ④ Purchase Quantity ⑤ Surface Treatment Requirement (e.g. bare, coated, anodized) ⑥ End Use / Working Pressure (if any special) ⑦ Your Email, WhatsApp or Any Contact Ways

DIMENSIONAL SPECIFICATION LIST

CHEMICAL COMPOSITION

PHYSICAL PROPERTIES

Standard Aluminium Tube Sizes in MM							Aluminium Square, Rectangular & Hollow Section Sizes

NB	OD (mm)	SCH 5	SCH 10	SCH 40	SCH 80	SCH 40 kg/m	Square section (mm)	Wall (mm)	Rectangular section (mm)	Wall (mm)
1/4"	13.72	–	1.65	2.24	3.02	0.2	12.7 x 12.7	1.0 to 2.0	10 x 20	1.0 to 2.0
3/8"	17.15	–	1.65	2.31	3.2	0.26	19 x 19	1.2 to 2.0	20 x 40	1.2 to 3.0
1/2"	21.34	1.65	2.11	2.77	3.73	0.44	25 x 25	1.5 to 3.0	25 x 50	1.5 to 3.0
3/4"	26.67	1.65	2.11	2.87	3.91	0.58	38 x 38	2.0 to 4.0	40 x 80	2.0 to 4.0
1"	33.4	1.65	2.77	3.38	4.55	0.86	50 x 50	2.0 to 5.0	50 x 100	2.0 to 5.0
1 1/4"	42.16	1.65	2.77	3.56	4.85	1.16	75 x 75	3.0 to 6.0	60 x 120	3.0 to 6.0
1 1/2"	48.26	1.65	2.77	3.68	5.08	1.39	100 x 100	3.0 to 8.0	100 x 200	3.0 to 10.0
2"	60.33	1.65	2.77	3.91	5.54	1.87	Up to 300 x 300	To 30.0	To order	To 30.0
2 1/2"	73.03	2.11	3.05	5.16	7.01	2.97
3"	88.9	2.11	3.05	5.49	7.62	3.88
4"	114.3	2.11	3.05	6.02	8.56	5.53
5"	141.3	2.77	3.4	6.55	9.53	7.49
6"	168.27	2.77	3.4	7.11	10.97	9.72
8"	219.07	2.77	3.76	8.18	12.7	14.6
10"	273.05	3.4	4.19	9.27	15.09	20.75
12"	323.85	3.96	4.57	10.31	17.48	27.44
16"	406.4	4.19	4.78	12.7	21.44	42.53
20"	508	4.78	5.54	15.09	26.19	63.16

Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12
