Name: 6061 Aluminum Flat Bar
SKU: 0

0086 18961806236

8618961806236

sale2@jdxtg.com

Get Instant Quote

ALUMINUM



Location： Home > ALUMINUM > Aluminum flat bar > 6061 Aluminum Flat Bar

MESSAGE

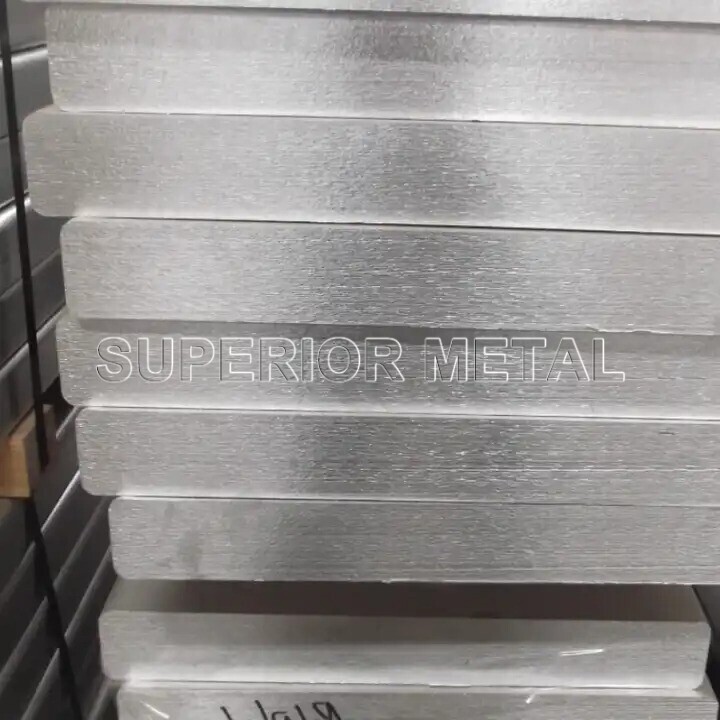

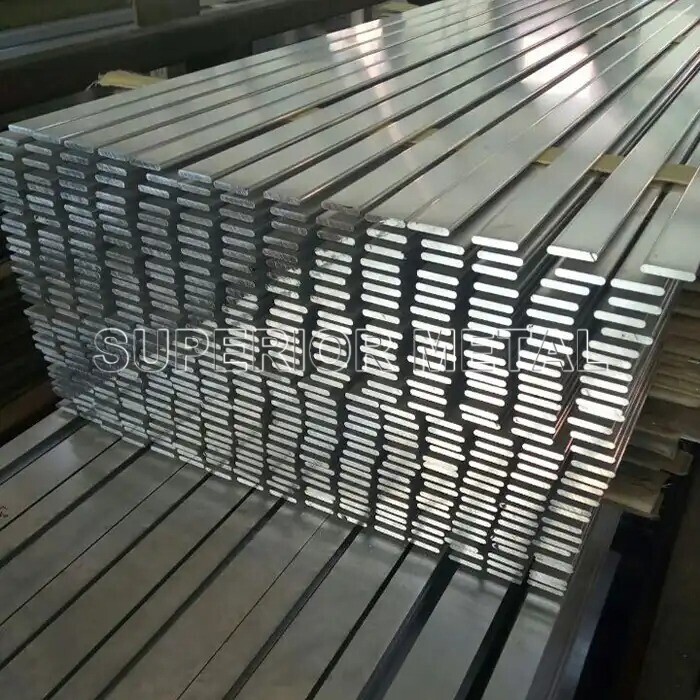

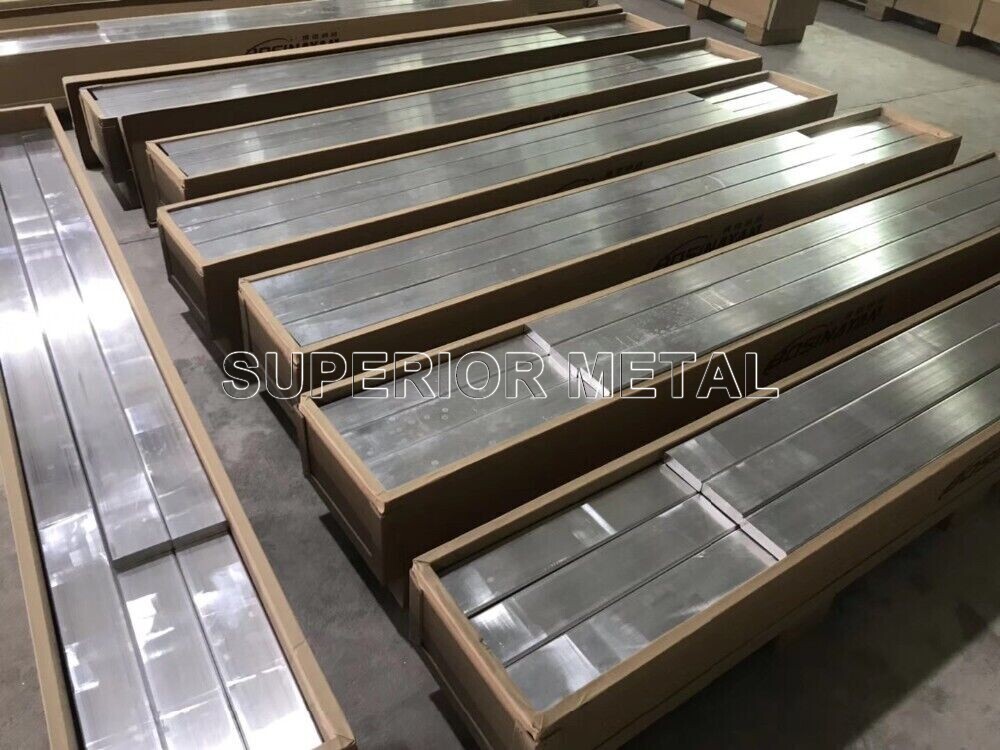

6061 Aluminum Flat Bar

● Min. Order: 1 Ton
● FOB Port: Shanghai
● Payment Terms: Telegraphic Transfer (T/T)
● Country of Origin: China (mainland)
● Available Price Term: EXW China, FOB China Port, CIF/CFR Destination Port etc.



E-mail：sale2@jdxtg.com



Tel：0086 18961806236



WhatsApp：8618961806236

Get Live Quotes

6061 Extrusion Aluminum Alloy Flat Bar Manufacturer

● Model Number: 6061 6063 2024 7075 etc.

● Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.

● Standard: ASTM, AISI, JIS, EN, DIN, GB, ASME, etc.

● Standard Export Package: Wooden Case or Wooden Pallet

● Documents: Invoice, Packing list, Bill of Loading, Mill Test Certificate

● Inspection: Any Third-Party Inspection Certificate Like SGS, TUV

● Price: Quote according to the Specifications and Order Quantity you need

● Datas Required Before Quotation: Thickness, Width, Length, Purchase Quantity, Special Requirements, and Your Email Whatsapp/Any Contact Ways

DIMENSIONAL SPECIFICATION LIST

CHEMICAL COMPOSITION

PHYSICAL PROPERTIES

2*20	5*30	6*80	8*60	10*35	10*200	12*200
2*25	5*40	6*90	8*70	10*40	12*12	14*14
2*40	5*50	6*100	8*80	10*45	12*20	14*20
2*50	5*60	6*110	8*90	10*50	12*30	14*30
3*10	5*70	6*120	8*100	10*55	12*40	14*40
3*15	5*80	6*130	8*110	10*60	12*50	14*50
3*20	5*90	6*140	8*120	10*65	12*60	14*60
3*25	5*100	6*150	8*130	10*70	12*70	14*70
3*30	5*110	6*160	8*140	10*80	12*80	14*80
3*40	5*120	6*170	8*150	10*90	12*90	14*90
3*50	5*130	6*180	8*160	10*100	12*100	14*100
4*20	5*140	6*190	8*170	10*110	12*110	14*110
4*25	5*150	6*200	8*180	10*120	12*120	14*120
4*30	6*10	8*8	8*190	10*130	12*130	14*130
4*40	6*20	8*10	8*200	10*140	12*140	14*140
4*50	6*30	8*15	10*110	10*150	12*150	14*150
5*10	6*40	8*20	10*15	10*160	12*160	14*170
5*15	6*50	8*30	10*20	10*170	12*170	14*180
5*20	6*60	8*40	10*25	10*180	12*180	14*190
5*25	6*70	8*50	10*30	10*190	12*190	14*200

Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1050	0.25	0.4	0.05	0.05	0.05	—	0.05	0.03	0.03	—	99.5
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
2024	0.5	0.5	3.8-4.9	0.30-0.9	1.2-1.8	0.1	0.25	0.15	0.05	0.15	Rem.
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5005	0.3	0.7	0.2	0.2	0.50-1.1	0.1	0.25	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.
7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2	0.05	0.15	Rem

Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
7075	T6	572.3	503.3	11	12
