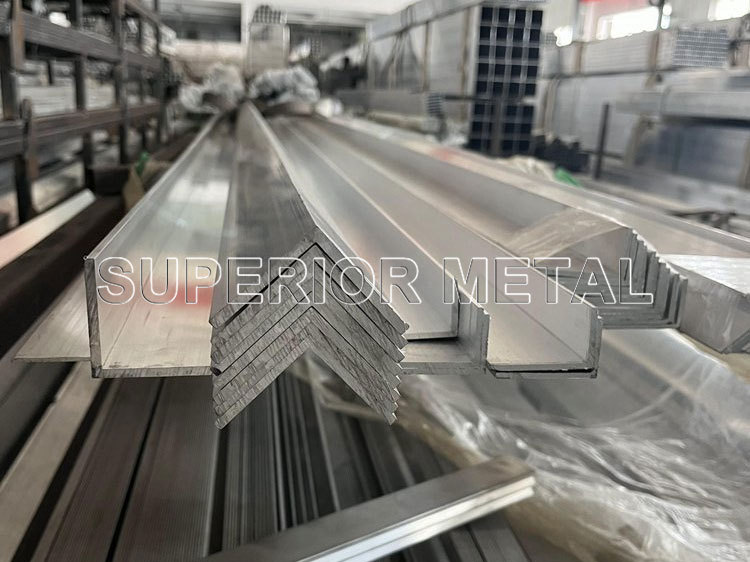

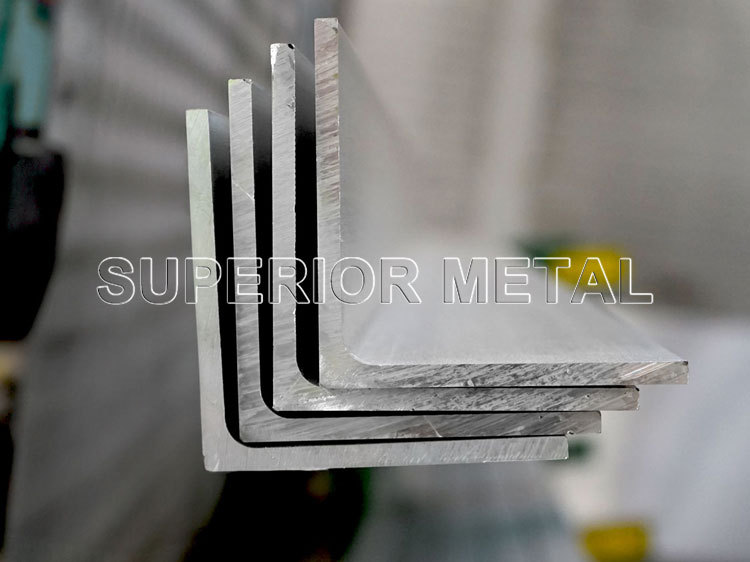

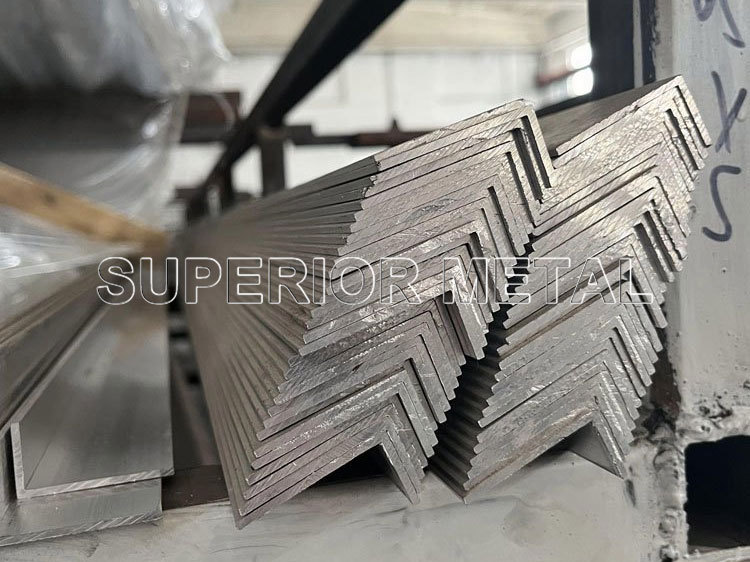

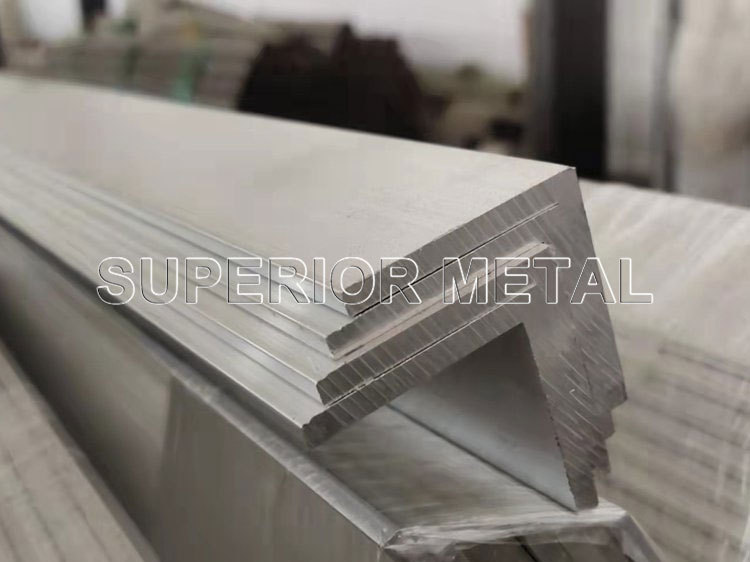

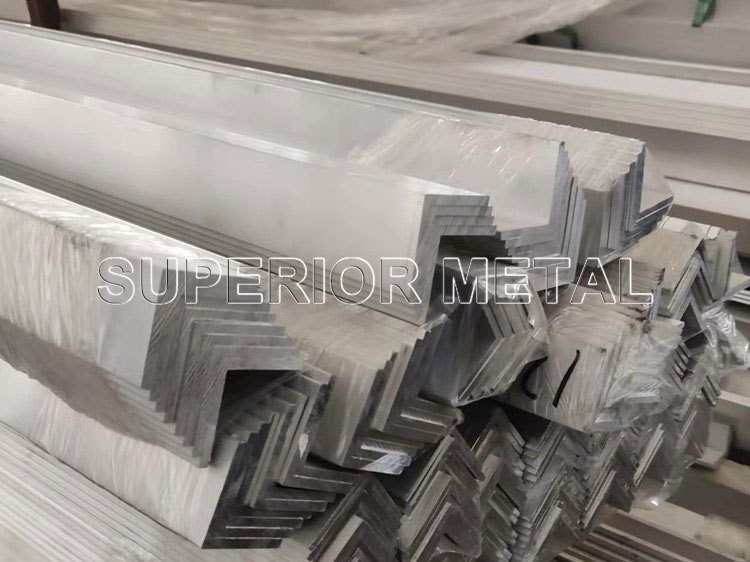

6063 aluminum angle bar

● MOQ: 1 Ton Each
● Loading Port: China Port
● Available Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.
● Country of Origin: China



E-mail：sale2@jdxtg.com



Tel：0086 18961806236



WhatsApp：8618961806236

Get Live Quotes

6000 Series Customized 6063 Aluminum Alloy Plate Sheet Supplier

● Model Number: AL6063

● Brand Name: ALNAN, NANSHAN, SWA, ALCOA, MINGTAI, CHALCO etc.

● Standard: ASTM, AISI, JIS, EN, DIN, GB, ASME, etc.

● Standard Export Package: Wooden Case or Wooden Pallet

● Documents: Invoice, Packing list, Bill of Loading, Mill Test Certificate

● Inspection: Any Third-Party Inspection Certificate Like SGS, TUV

● Price: Quote according to the Specifications and Order Quantity you need

● Datas Required Before Quotation:

①Thickness ②Width ③Length ④Purchase Quantity ⑤Special Requirements ⑥Your Email Whatsapp or Any Contact Ways

DIMENSIONAL SPECIFICATION LIST

CHEMICAL COMPOSITION

PHYSICAL PROPERTIES

Specification
1060.8	20202.5	35352	50303	606010	80605	1001008
1360.8	20203	35353	50405	65655	80804	10010010
10101	25151	38382	50502	656510	80806	110505
10102	25151.5	38383	50503	70505	80808	120505
12121	25152	40102	50504	70703	808010	12012010
15101	25253	40302	505010	70706	100305	15015010
20102	30203	40403	60603	76763	100505	2001009

CHEMICAL COMPOSITION OF ALUMINUM ANGLE BAR
Garde	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHERS1	OTHERS2	Al
1060	0.25	0.35	0.04	0.05	0.03	—	0.04	0.03	0.03	—	99.7
1100	Si + Fe ≤ 1.0		0.05-0.20	0.05	—	—	0.1	—	0.05	0.15	99
3003	0.6	0.7	0.05-0.20	1.0-1.5	—	—	0.1	—	0.05	0.15	Rem.
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	—	0.05	0.15	Rem.
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15	0.03	0.1	Rem.
6061	0.4-0.8	0.7	0.15-0.40	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.05	0.15	Rem.

PHYSICAPHYSICAL PROPERTIES OF ALUMINUM ANGLE BAR
Grade	Hardness	Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
